OUR PRODUCTS

PLATENS

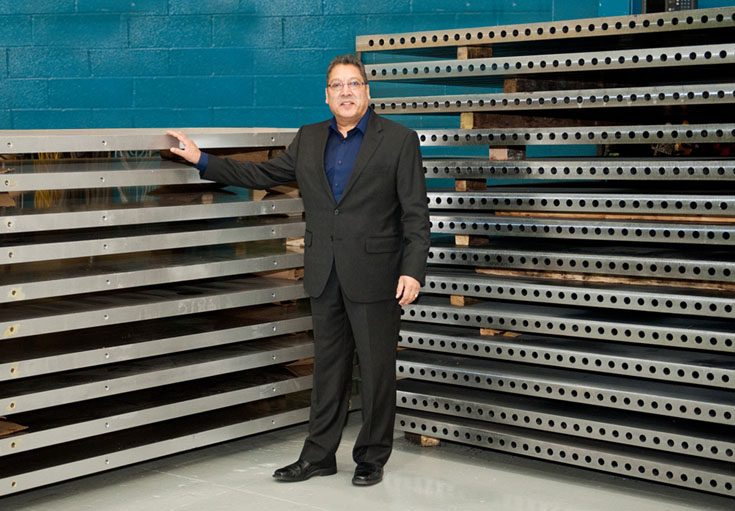

Platens
Platens

The Sherdil Platen starts with A36 44W North American steel and is machined and tested with the utmost precision for long-lasting quality and durability. For any OEM wood, rubber, or plastic injection press, we can completely machine, gun drill, and weld platens with a parallelism of +/-.002” up to 480” long.

Our precise equipment such as the Cincinnati Planer Mill equipped with Heidenheinn CNC controls allows us to machine with superior accuracy and efficiency. Each platen is certified and pressure tested and each customer receives a copy of the mill and inspection reports with each order.

MACHINING & FABRICATING

Machining and fabricating

The machining and fabricating capabilities at Sherdil Precision are endless. With top of the line equipment and software, we are able to expertly complete any job within the tolerances requested. Our capacity includes large scale machining, gun drilling, surface grinding, fabricating and welding, vibratory stress relieving, and painting – and thanks to our 40 Ton crane, we can handle any job up to 80,000 lbs.

We excel at complex, dimensional work which includes (but is not limited to) some of the following products:

Platens
Bolster Plates
Die Sets
Bases/Beams
Gates
Military Components

SPECIALTY PRODUCTS

Our innovative team of engineers have the extensive knowledge required to design and build impressive specialty equipment for any industry. Customers come to us with ideas when they’re not sure where to turn, and we get to work on bringing their ideas to life. No idea is too outrageous, and we are always up for an exciting challenge.

Our highly skilled service technicians offer both in-house and on-site training and support internationally.

PRE-HEATING OVEN

PRE-HEATING OVEN

The Pre-Heating Oven does just that: it pre-heats aluminum sheets to 1000 deg. F in 90 seconds for easy manipulation to automotive forming. Designed for minimum heat loss for energy efficiency, our standard 2m x 4m oven comes with Allen Bradley CompactLogix PLC controls, Allen Bradley HMI Panelview Plus 1000, 16 zone temperature control, a 24” opening, and hydraulic closing. Alternative selections include:

Custom sheet sizes
Specialty platen materials
Higher temperatures
Increased/Decreased opening sizes
Ejector Pins (mechanical or hydraulic actuation)

PRESSES

Sherdil Precision Inc. has always focused on precision, quality, innovation, and customer support. With extensive knowledge on Rubber Press Systems, Sherdil has the product information, engineering, and technology to manufacture superior Injection and Compression Molding Presses built to customer’s specifications. Focus is on providing the best production advantages and cost savings to customers.

FIFO 800

FIFO 800

DU500 DOUBLE SHUTTLE

DU500 DOUBLE SHUTTLE

DC300

DC300

STANDARD PRESS RANGE INCLUDES

• Injection and Compression Presses
• Vertical Injection
• Horizontal Injection
• FIFO Injection
• Hydraulic Clamping
• Hydraulic-Mechanical Clamping
• Clamp Range 90 to 800 US Tons
• Injection Range 0.5L to 10L

CUSTOM PRESS DESIGNS

• 90 to 5000 US Tons
• Injection, Compression and Transfer
• Single or Multiple Openings
• Automated Work Cells

OPTIONAL EQUIPMENT

• Hydraulic Upper Ejectors
• Hydraulic Lower Ejectors
• Mechanical Lower Ejectors
• Partial Sliding Table
• Full Sliding Table
• Sliding Center Plate
• Shuttling Center Plate
• Lower Mold Single Shuttle
• Lower Mold Double Shuttle
• External Knock-Outs
• Parts Handling Systems
• Automation Packages
• Oversize Platens
• Increased Shot Volume
• Vacuum Systems
• Mold Loading and Unloading Systems
• Rear Mold Loading Access
• Silicone and TPE/TPR capabilites
• Strip Break Detection
• Multiple Heat Zone Control
• Mold Heat Zone Control
• Mold Cleaning Systems
• Flexible Footprint Design
• Online Modem Support
• Independent Control Arm

Our Equipment

Cincinnati MAAG Planer Mill

CINCINNATI MAAG U5-1500
5-AXIS CNC MACHINING CENTER

• X-Axis Travel 18,288mm (744")
• X-Axis Accuracy Overall 0.08mm (0.003")
• Y-Axis Travel 3,658mm (144")
• Y-Axis Accuracy Overall 0.03mm (0.0012")
• Z-Axis Travel 1,000mm (72")
• Z-Axis Accuracy Overall 0.03mm (0.00012")

CINCINNATI CNC PLANER MILL

CINCINNATI CNC PLANER MILL

• 144" x 480" with 72" clearance under spindle
• Able to achieve thickness parallelism +/- .002 over 480"
• 3 axis programming capability
• 4 axis monitoring

WALDRICH CNC PLANER MILL

WALDRICH CNC PLANER MILL

• 100" x 360" with 60" clearance under spindle
• Able to achieve thickness parallelism +/- .002 over 360"
• 3 axis programming capability
• 4 axis monitoring

Scharmann Boring Mill

Scharmann Boring Mill

• X-Axis 2500mm
• Y-Axis 1000mm
• Z-Axis 1000mm
• Spindle travel 500mm

TAURUS CNC GUNDRILL

TAURUS CNC GUNDRILL

• .125" to 2.25" diameter drilling
• Drilling Depth 85" from one side
• 10 Ton Table Capacity
• CNC Heidenhein Controls
• Lemoine Software

FAVRETTO SURFACE GRINDER

FAVRETTO SURFACE GRINDER

• Capacity 60" wide x 200" long x 40" high
• Accuracy within +/- .0002”

Our equipment also includes a Droop & Rein CNC Vertical Mill, Haas CNC Vertical Machining Centre, Romi CNC Lathe, Union Horizontal Boring Mill, additional CNC Gun Drill, and four overhead cranes.

Service & Spare Parts

Maintaining your press and ensuring the highest performance requires Sherdil Precision to support all your technical needs.

Engineering

Engineering

Injection and Compression Molding Presses are engineered and manufactured to the highest quality standards. Designs are tested and approved by experienced engineers against the most stringent worldwide standards.

Technical Support

Technical Support

In today's changing manufacturing environment, Sherdil recognizes the need for individual programs to suit each company. Full training, both in-house and on-site, is offered. Once you purchase a Sherdil manufactured press, you will be supported by a team of highly skilled service technicians.

Spare Parts

Spare Parts

A valuable company policy is to use as many components off the shelf as possible to ensure high availability of replacement parts. A large stock of spare parts is kept in house available for delivery at your request.

About Us

Sherdil Precision Inc. is a leading global manufacturer in large plate machining, gun drilling, precision surface grinding, and custom design/build specialty equipment. Sherdil has earned a reputation for its diverse machining capabilities, quality tested CNC machined products, and the confidence to take on challenging new projects for a diverse clientele.

Sherdil is known globally for their premier product: platens. Expertly machined and quality tested, Sherdil produces more than 100 platens yearly that ship worldwide. They have created a high standard testing procedure.

In 2018, Sherdil celebrated 25 years in business, a milestone which signifies their success throughout the evolution of the manufacturing industry. In 2019, they completed a 10,000 square foot expansion to increase capabilities and enhance efficiency for large projects. Sherdil is committed to leadership in new technologies and equipment.

As an ISO 9001:2015 certified corporation, Sherdil is committed to quality, innovation, and focusing on rewarding relationships with their customers, suppliers, and workforce.
